Sound you hear.
Never see.
The JBL CONCEAL series disappears completely into your walls and ceilings — finished over with paint, wallpaper, or veneer — while delivering full, architectural sound. No grilles. No compromise. Just music that seems to come from everywhere and nowhere at once.
Scroll to walk through the rooms
The room is the speaker
A pair of CONCEAL loudspeakers vanish into the walls and finish over with paint — nothing on display, yet full-range sound fills the entire room. The architecture stays pure; the music seems to come from everywhere.
- Flush-mount, paintable Fidelity Glass™ skin
- Full-range sound with zero visible hardware
Cinema, unseen
The flagship C86 delivers reference LCR performance from behind the wall, while the C82W invisible subwoofer brings deep, tactile bass — a complete Dolby Atmos foundation with not a single speaker grille in sight.
- Reference LCR from the flagship C86
- Invisible C82W subwoofer for tactile bass
Wake to music, not hardware
Discreet, room-filling audio in the primary suite — finished seamlessly into the ceiling and walls so nothing interrupts the calm. Paired with circadian lighting and shading on one interface.
- Seamless in-ceiling integration
- Tuned for intimate, even coverage
Sound where speakers can't be seen
Spa baths, steam rooms, and wet areas are exactly where visible speakers fail — and where invisible audio excels. CONCEAL finishes behind the surface, tolerant of moisture and heat, for a true sanctuary.
- Finished behind tile, stone & plaster
- Moisture- and heat-tolerant placement
Engineered to vanish. Tuned to perform.
Every CONCEAL loudspeaker is built around a patented compression-molded baffle and a paintable Fidelity Glass™ outer skin with an integrated rear enclosure. The result installs flush to the surface and finishes invisibly — yet sounds like full-bandwidth high-fidelity audio. As an authorized JBL dealer, we specify, install, and calibrate every model to the room.

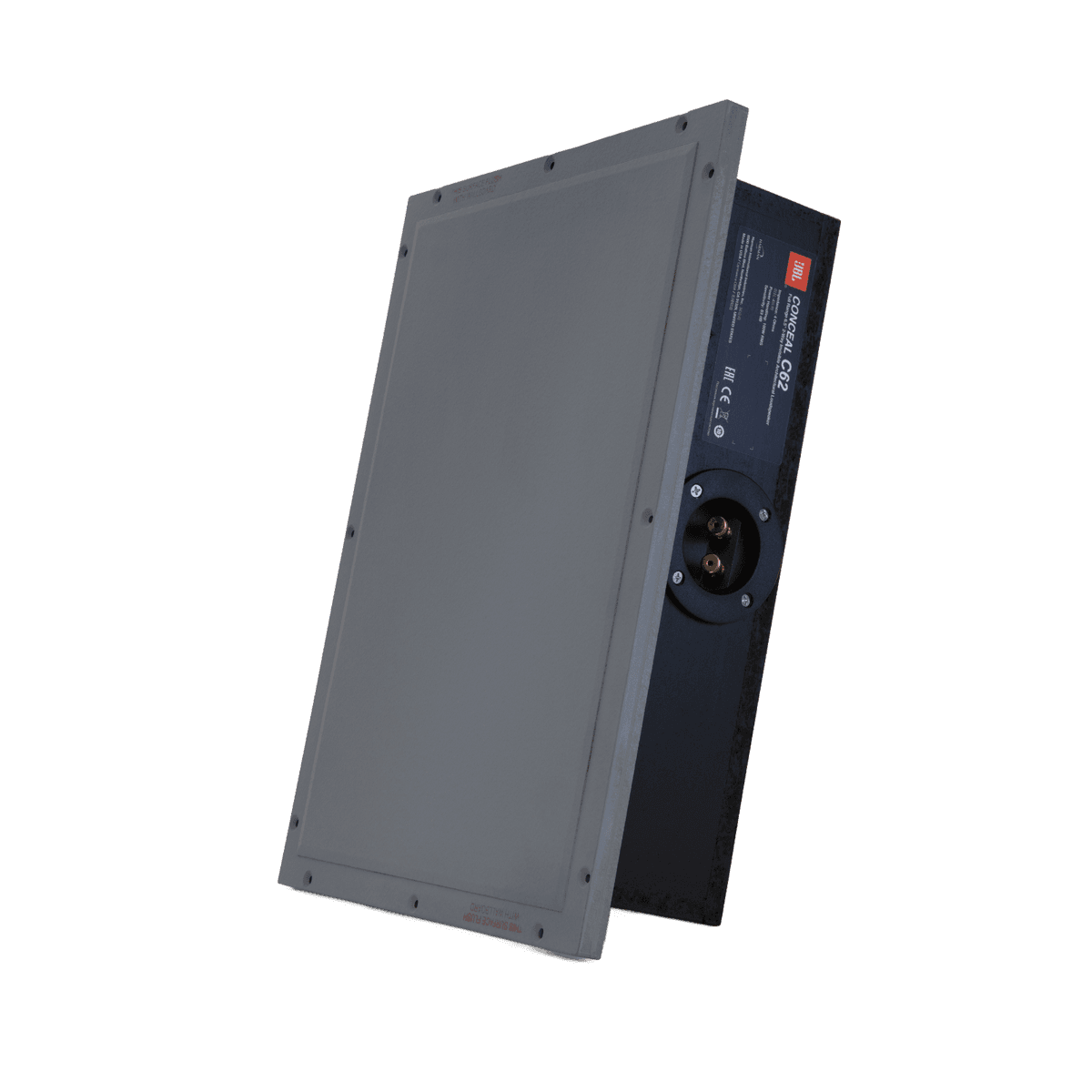

Conceal C62
C62The most versatile model in the series. A compact 2-way design built around a patented compression-molded baffle and paintable Fidelity Glass™ skin — disappearing completely into wall or ceiling while delivering full-range, room-filling sound.
- Configuration
- 2-way
- Drivers
- 6.5" woofer · 1.18" HF transducer
- Power Handling
- 50–100W RMS
- Impedance
- 4 Ω
- Sensitivity
- 83 dB (1W/1m)
- Frequency Response
- 45 Hz – 20 kHz (−6 dB)

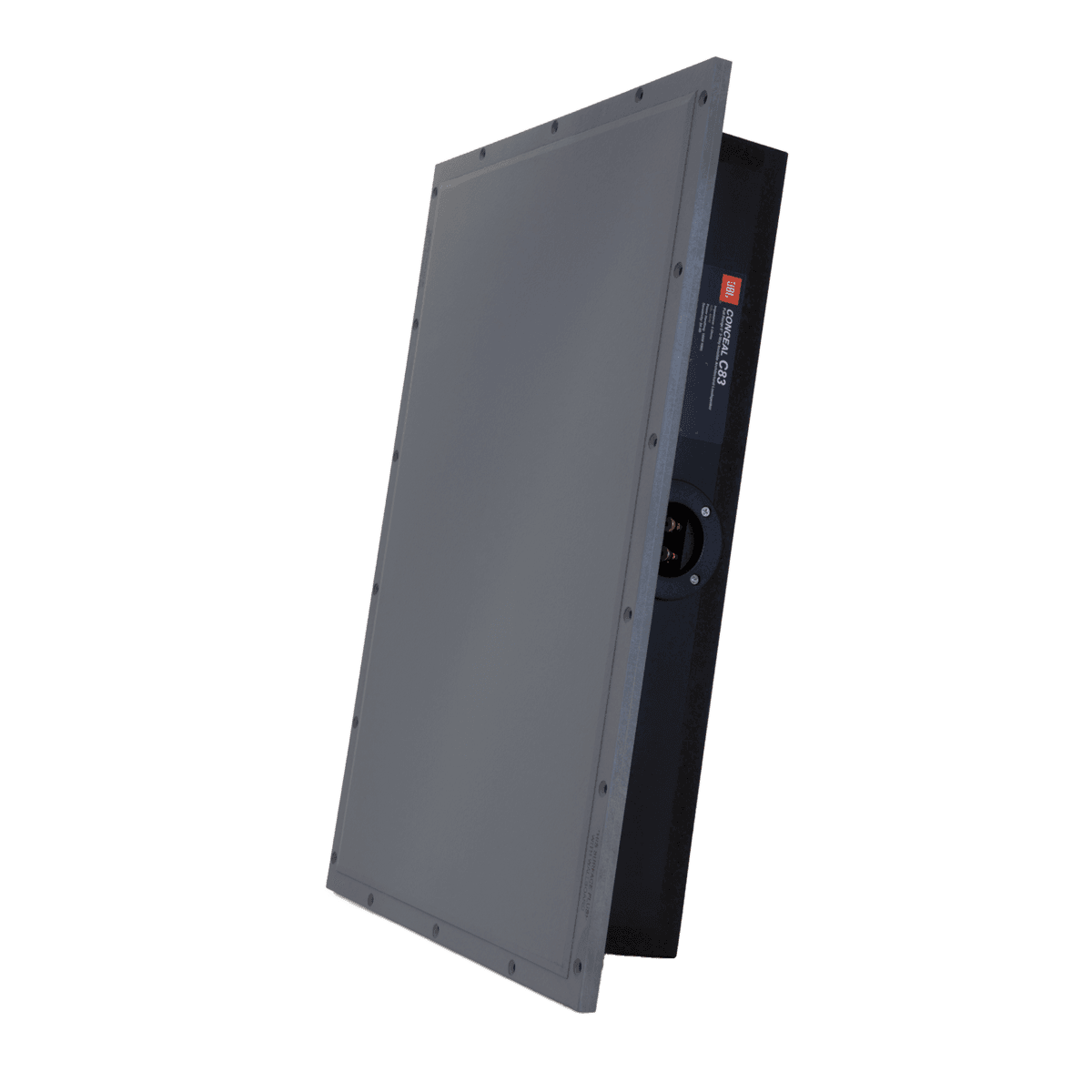

Conceal C83
C83A high-performance 3-element design pairing an 8-inch woofer with dedicated midrange and high-frequency transducers. The added driver complement brings greater output and refinement for larger spaces and reference listening — entirely out of sight.
- Configuration
- 3-element
- Drivers
- 8" woofer · 1.2" mid · 1" HF
- Power Handling
- 50–160W RMS
- Impedance
- 4 Ω
- Sensitivity
- 84 dB (1W/1m)
- Frequency Response
- 45 Hz – 20 kHz (−6 dB)

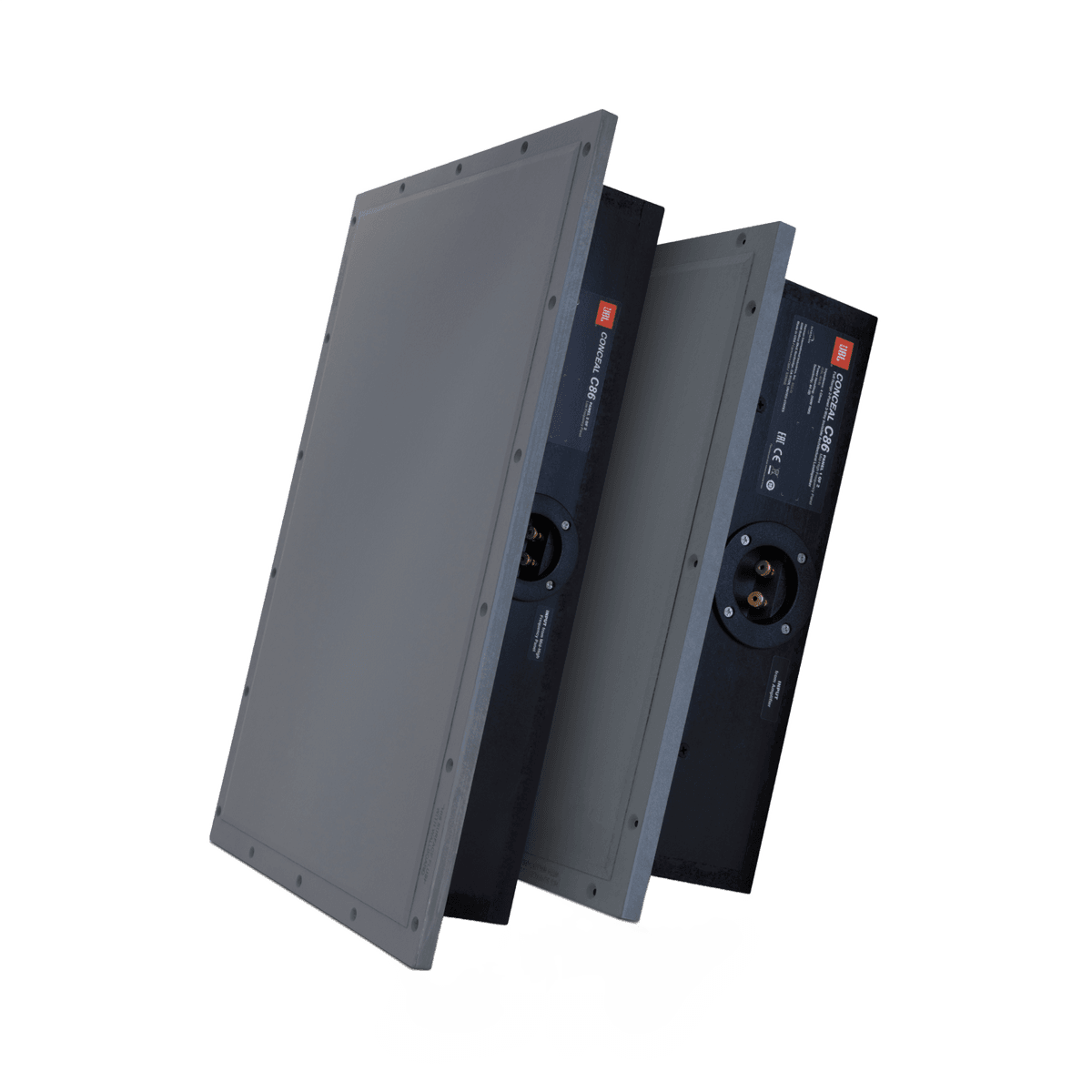

FlagshipConceal C86
C86The flagship of the series. A 3-way, dual-panel system with a separate low-frequency panel and a five-driver mid/high panel — dual 8-inch woofers, four midrange transducers and dual tweeters. Reference-grade, full-bandwidth performance for the most demanding installations, completely invisible.
- Configuration
- 3-way · dual panel
- Drivers
- Dual 8" woofers · 4× mid · dual 1" HF
- Power Handling
- 50–200W RMS
- Impedance
- 4 Ω
- Sensitivity
- 84 dB (1W/1m)
- Frequency Response
- 45 Hz – 20 kHz (−6 dB)

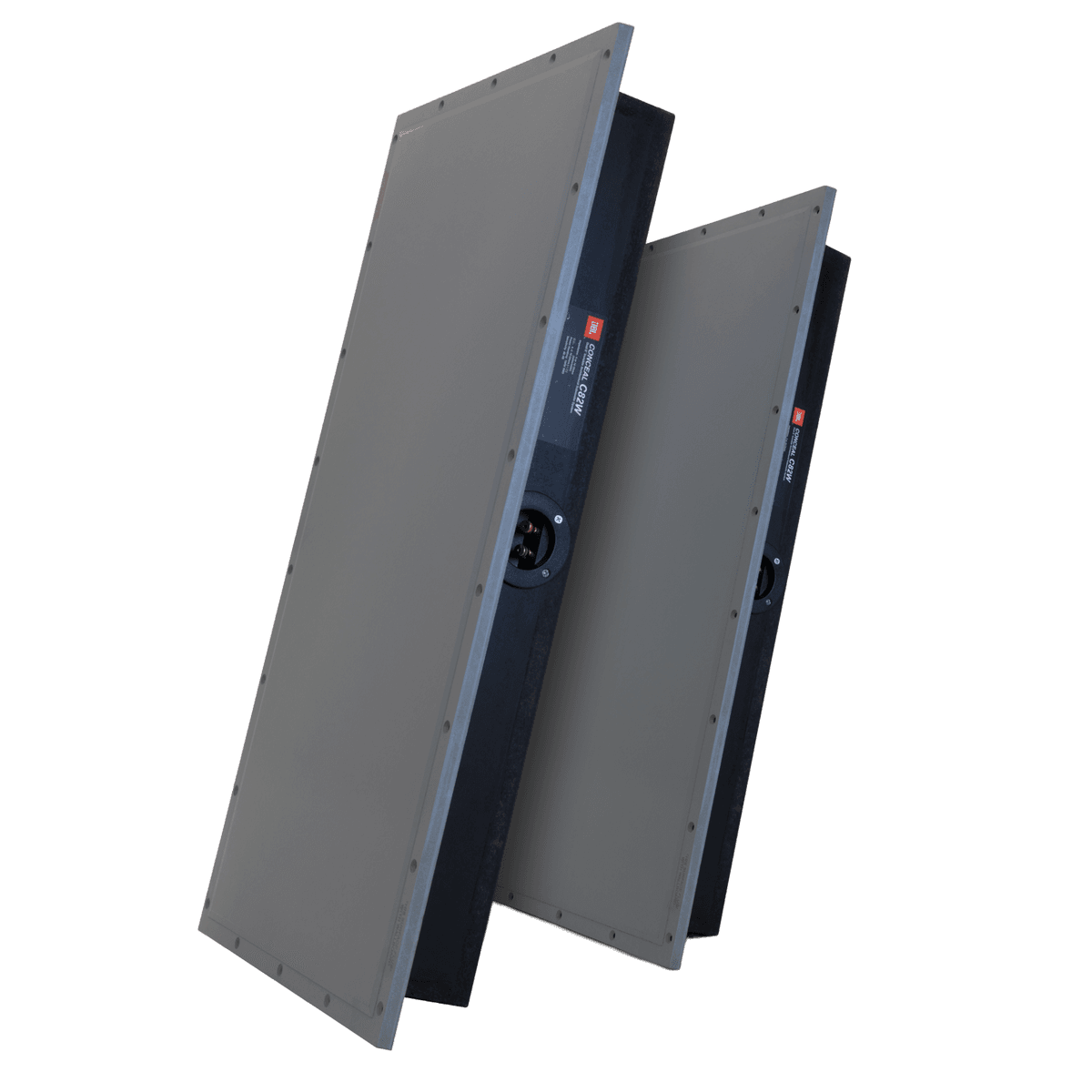

Conceal C82W
C82WInvisible low-frequency reinforcement. A two-panel subwoofer system with a pair of acoustically coupled 8-inch drivers per panel, delivering deep, tactile bass that you feel rather than see — the foundation for full-range invisible audio and home cinema.
- Configuration
- Dual-panel subwoofer
- Drivers
- Paired 8" drivers per panel
- Power Handling
- 60–100W RMS per panel
- Impedance
- 4 Ω / 16 Ω selectable
- Sensitivity
- 86 dB (1W/1m)
- Frequency Response
- 45 Hz – 20 kHz (−6 dB)

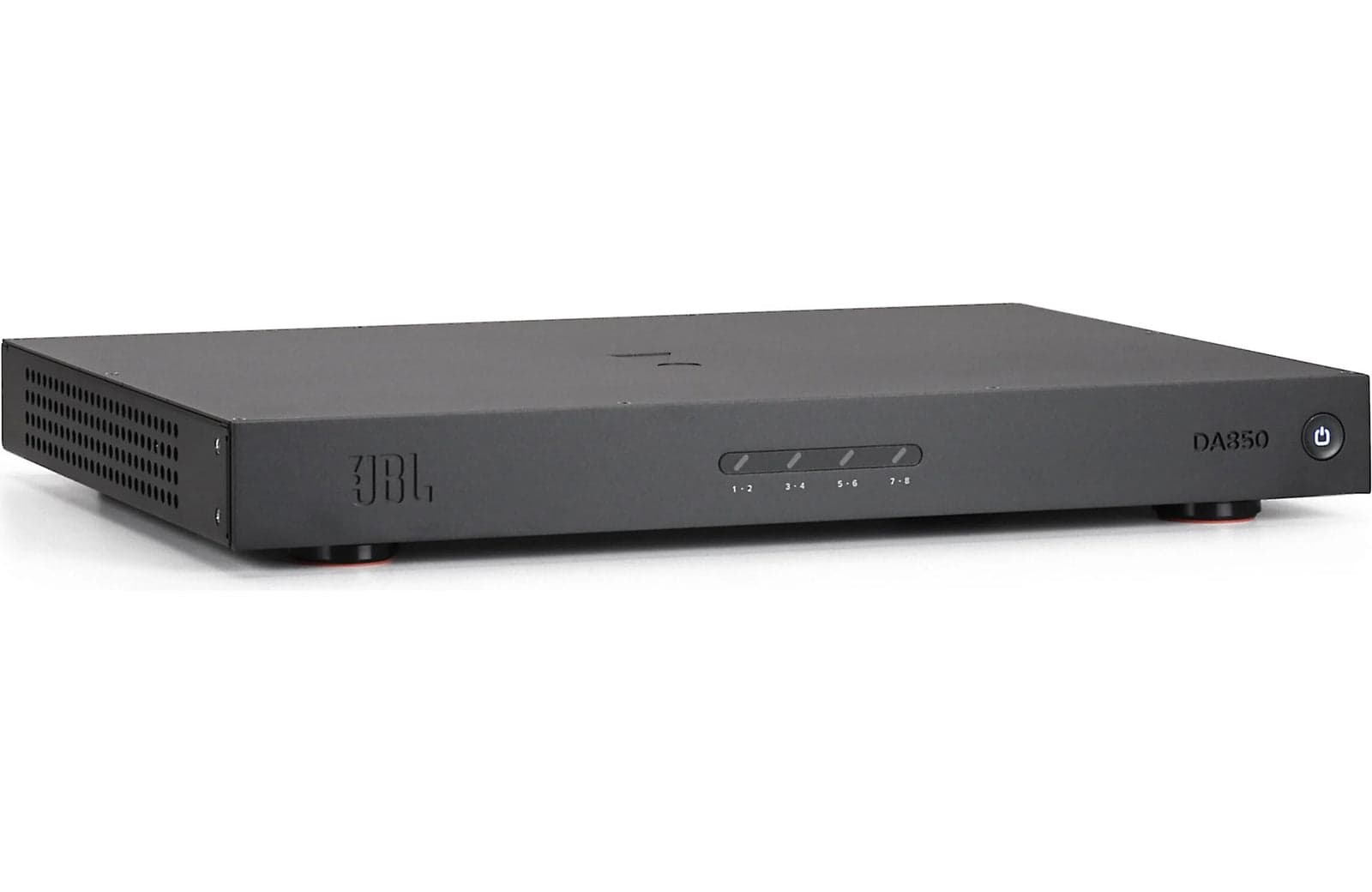

The power behind the silence.
Engineered to drive JBL's architectural loudspeakers throughout the home, the DA Series delivers high-resolution, multi-zone amplification in a compact 1U chassis. Each Class D channel is bridgeable for higher-power demands, and zones can run independent sources or share a single source across the whole system — with global audio in/out to expand across multiple amplifiers.
Eight channels of bridgeable Class D power across four independent zones — ideal for single-residence whole-home audio.
Sixteen channels across eight zones for larger estates and multi-area installations, in the same compact 1U footprint.
- 50W per channel into 8 Ω · 110W into 4 Ω
- 185W bridged mono into 8 Ω
- Class D amplification · 1U rack chassis
- 8× RCA inputs · global audio in/out bus
- Power modes: 12V trigger · audio-sensing · always-on
- Overcurrent & thermal protection
Hear what invisible sounds like.
We design, install, and calibrate JBL CONCEAL systems across the Greater Toronto Area and Canada-wide. Every engagement begins with a complimentary consultation.
Request a Consultation
